Danish audio brand DALI is known for its simplistic and elegant designs, and the new DALI SUB C-8 D subwoofer is no exception. The DALI SUB C-8 D enhances music and movie experiences with its consistent and stylish design. Its exceptional performance accurately reflects the input signal, which is crucial to DALI’s commitment to quality.
The DALI SUB C-8 D’s cabinet is constructed from durable MDF, meeting DALI’s high standards for design and craftsmanship. The cabinet is effectively isolated from the floor through four large polymer feet. The enclosure comes in various colors, including black, white, and grey, making it a seamless addition to most loudspeakers and interior decor.
Overall, the DALI SUB C-8 D is an excellent choice for those seeking a subwoofer that combines design and performance in one package.

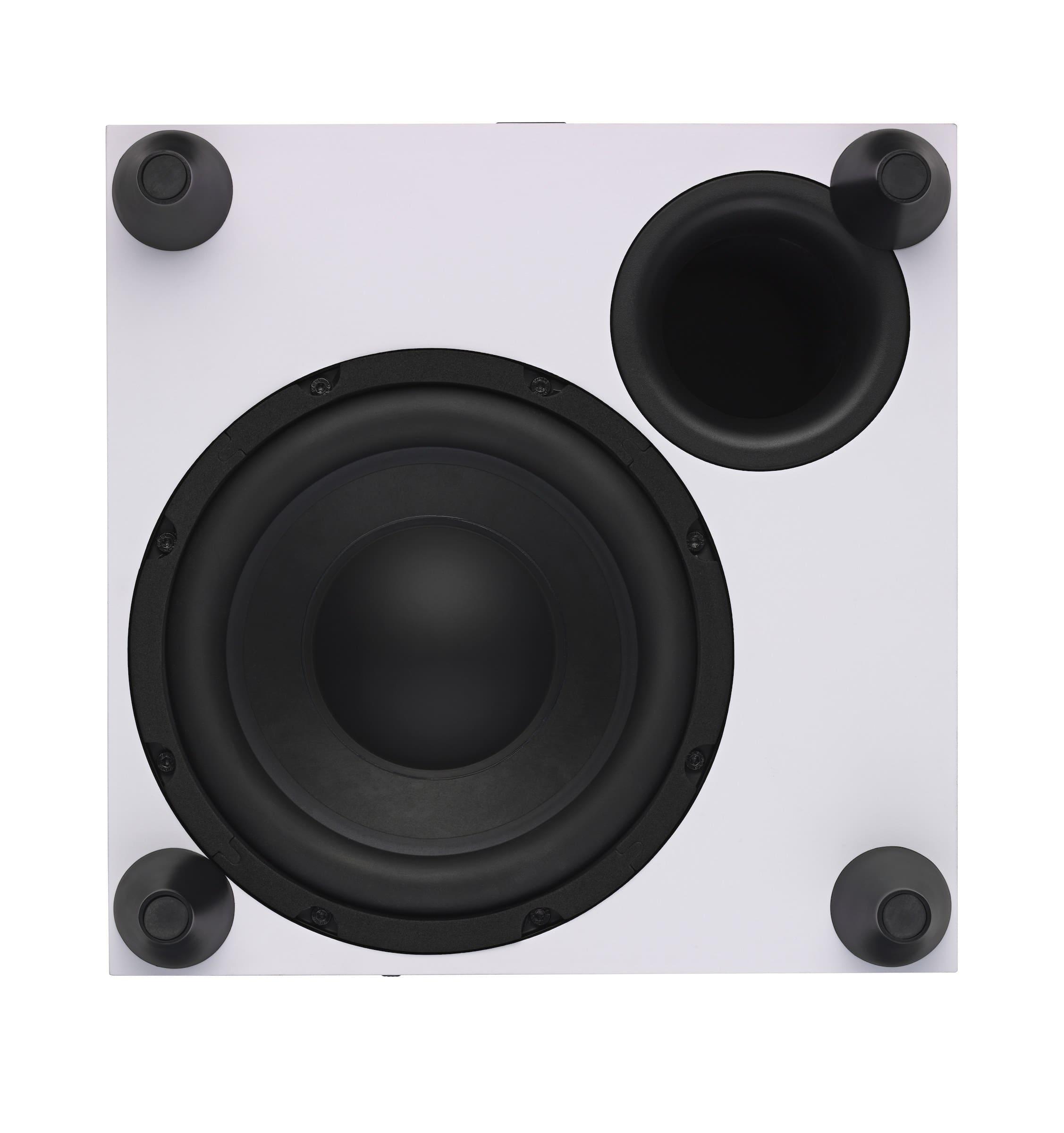

The DALI SUB C-8 D features an 8-inch downward-facing woofer with a high-quality paper pulp diaphragm that provides rigidity and excellent decomposition properties while remaining lightweight and flexible.
The woofer’s drive system is built around an oversized ferrite magnet and optimized for maximum voice coil gap current. This is crucial in achieving high B/L, allowing the SUB C-8 D to deliver subtle low-frequency details in music even at higher SPL levels. With a measured B/L value of 14 N/amp, the monomer control, and precision of the SUB C-8 D are rarely seen in this class of products.
The DALI SUB C-8 D features a voice coil with a length of 26.5mm that is kept ventilated to ensure proper air cooling of the system and coil while promoting stable impedance. The support structure is also well-ventilated, facilitating the best cooling effect possible.
The vented architecture of the SUB C-8 D also reduces internal compression of the motor system, ensuring free diaphragm movement without any compression affecting performance. This design adheres to the principle of low-loss sound, allowing for long linear excursions and exceptional audio quality.
The DALI SUB C-8 D has a highly linear 170 Watt RMS Class D amplifier circuit that faithfully follows and presents the desired signal with minimal bias. This design provides a continuous power supply and up to 220 watts of peak power – a crucial feature for demanding signal applications in movies or music. In standby mode, the SUB C-8 D consumes a mere 0.4 watts, making it highly energy-efficient.
The amplifier’s efficiency is as high as 70%, coupled with the power supply structure, resulting in minimal heat loss. As such, this subwoofer does not need an external heat sink.
To enhance sound reproduction and ensure that the bass can perform well in challenging environments, the amplifier in the DALI SUB C-8 D includes a limiter in two zones. One zone compares the input signal amplitude to the potential output signal level. In contrast, the other zone compares the available power of the power supply to the expected output signal voltage.
If either comparison indicates an issue, the limiter gently reduces the signal without affecting peak power. This ensures the subwoofer can operate reliably and deliver consistent performance, even in demanding conditions.

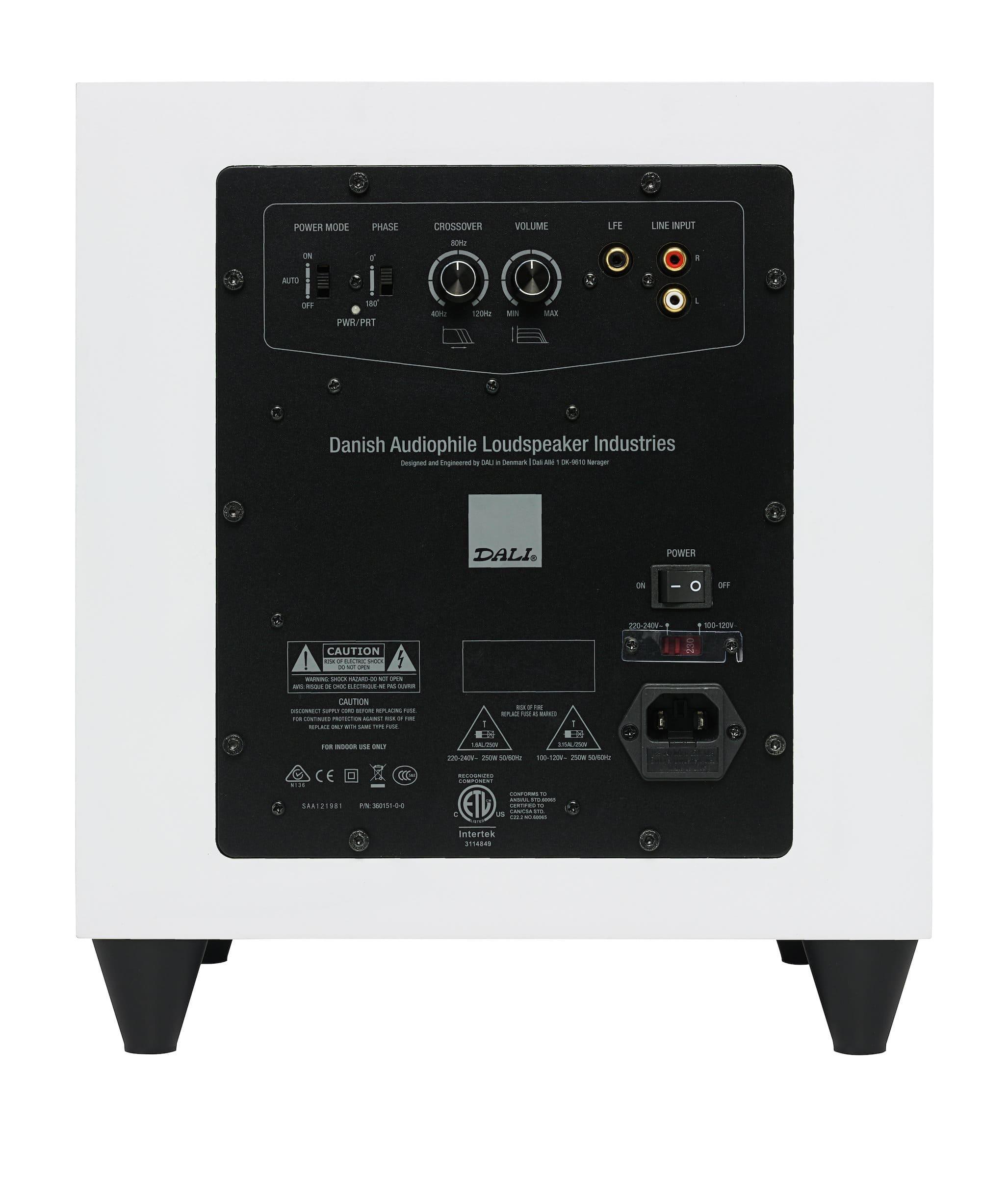

In conclusion, the DALI SUB C-8 D is an impressive subwoofer with outstanding sound quality and versatility. Its gain, adjustable crossover frequency, and phase controls make it easy to tailor the subwoofer’s performance to suit any main speaker and room acoustic needs.
With its solid MDF cabinet, high-quality paper pulp diaphragm, and efficient amplifier circuit, the DALI SUB C-8 D is designed to provide accurate and powerful bass that brings out the best in music and movies. Whether you’re a discerning audiophile or a movie buff, this subwoofer will surely exceed your expectations and deliver a truly immersive audio experience.
