How to Connect Speaker to An Amplifier – The Ultimate Guide


Welcome to our guide on how to properly connect your speaker to an amplifier! If you’re an audiophile or simply enjoy listening to music at home, you know that the quality of your sound system can make all the difference.

One of the key components of any sound system is the connection between the amplifier and the speakers. A proper connection ensures that the amplifier is able to deliver the necessary power to the speakers, allowing them to produce the best possible sound.

There are several different types of connections that can be used to connect an amplifier to a speaker. Some common options include banana plugs, bare wire, and spade connectors. In this guide, we’ll go through each of these options in detail and provide step-by-step instructions on how to make the connection.

Now that we’ve introduced the topic, let’s dive in and get started!

I.Tips For Maximizing Sound Quality

If you’re an audiophile, you know that sound quality is everything. Whether you’re listening to music, watching a movie, or playing a video game, the sound experience can make or break the overall enjoyment of the activity. That’s why it’s so important to ensure that you’re getting the best possible sound quality from your audio setup. Here are a few tips for maximizing the sound quality of your amplifier and speakers:

  • Matching the impedance of the amplifier and speakers: The impedance of an amplifier and speaker is a measure of the electrical resistance in the circuit. If the impedance of the amplifier and speaker are mismatched, it can lead to problems with the sound quality, including distortion and reduced volume. To ensure that you’re getting the best sound quality, it’s important to match the impedance of the amplifier and speaker as closely as possible.
  • Using the proper cables and connectors: The quality of the cables and connectors that you use can also have a big impact on the sound quality of your audio setup. Using high-quality cables and connectors can help to reduce signal loss and interference, resulting in a clearer and more dynamic sound.
  • Proper placement and orientation of the amplifier and speakers: The placement and orientation of your amplifier and speakers can also affect the sound quality. For example, placing the speakers too close to walls or corners can cause reflections and echo, which can distort the sound. Similarly, positioning the amplifier and speakers at the wrong angle can also impact the sound quality. To get the best sound quality, it’s important to carefully consider the placement and orientation of your audio equipment.

By following these tips, you can ensure that you’re getting the best possible sound quality from your amplifier and speakers. Whether you’re a music lover, movie buff, or video game enthusiast, maximizing the sound quality of your audio setup can enhance your overall listening experience.

B&W 805 D3 binding post

II. Gathering The Necessary Equipment

Before we can begin making the connection between your amplifier and speakers, it’s important to gather all of the necessary equipment. Here are the key steps to follow when gathering your equipment:

Identify the type of connector on your amplifier and speakers

The first step in gathering your equipment is to determine what type of connector you’ll need. Most amplifiers and speakers will have either a bare wire connector or a specific type of plug, such as banana plugs or spade connectors.

To identify the type of connector on your amplifier and speakers, simply take a look at the back of each device. You’ll want to make sure that you have the appropriate cables and connectors for the type of connector on your amplifier and speakers.

  • Bare wire connectors: These connectors consist of two or more stripped wires that are connected directly to the terminal posts on the amplifier and speakers. To make a connection using bare wire connectors, you’ll need a wire stripper tool to remove the insulation from the wire, as well as a set of pliers to secure the wires onto the terminal posts. This type of connector is relatively inexpensive and easy to work with, but it does require a bit of manual dexterity.
Bare wire connectors
Bare wire connectors
  • Banana plugs: Banana plugs are a popular type of connector that consists of a plug with a single, circular pin on the end. To make a connection using banana plugs, you’ll need to attach the plugs to the ends of your speaker wire using a crimping tool. The plugs can then be inserted into the terminal posts on the amplifier and speakers. Banana plugs are a bit more expensive than bare wire connectors, but they’re also much easier to work with and provide a secure connection.
Banana plugs
Banana plugs
  • Spade connectors: Spade connectors are another popular type of connector that consists of a flat, elongated pin with a handle on the end. To make a connection using spade connectors, you’ll need to attach the connectors to the ends of your speaker wire using a crimping tool. The connectors can then be inserted into the terminal posts on the amplifier and speakers. Like banana plugs, spade connectors are a bit more expensive than bare wire connectors, but they’re also much easier to work with and provide a secure connection.
Spade connectors
Spade connectors

Determine the length and type of cables needed

Once you know the type of connector you’ll be using, you’ll need to purchase the appropriate cables. Make sure to measure the distance between your amplifier and speakers to ensure that you get cables that are long enough. You’ll also want to consider the type of cable you need.

For example, some audiophiles prefer higher-quality, oxygen-free copper cables for their sound systems, while others are happy with more affordable options.

balanced cable

When choosing your cables, it’s also a good idea to consider the thickness (gauge) of the wire. Thicker wire is generally better for longer distances, as it can handle the increased power requirements. However, keep in mind that thicker wire is also more expensive and may be more difficult to work with. Ultimately, the right choice will depend on your specific needs and budget.

Gathering the necessary equipment is an important step in the process of connecting your speaker to an amplifier. By taking the time to identify the right connectors and cables, you’ll be well-prepared to make a proper connection and get the best possible sound quality from your system.

III. Preparing The Amplifier And Speakers

Now that you’ve gathered all of the necessary equipment, it’s time to prepare your amplifier and speakers for the connection. Here are the key steps to follow when preparing your equipment:

Set the amplifier and speakers in the desired location

Before you begin making the connection, it’s important to determine where you want your amplifier and speakers to be located. Consider factors such as the size of your room, the layout of your furniture, and the overall aesthetic of your space. Once you’ve chosen a location for your amplifier and speakers, set them up in the desired location.

Ensure that the amplifier and speakers are turned off

Before making any connections, it’s important to make sure that both the amplifier and the speakers are turned off. This will help prevent any accidental shocks or short circuits during the connection process.

Preparing your amplifier and speakers is a crucial step in the process of connecting them. By setting them up in the desired location and ensuring that they’re turned off, you’ll be well-prepared to make a proper connection and get the best possible sound quality from your system.

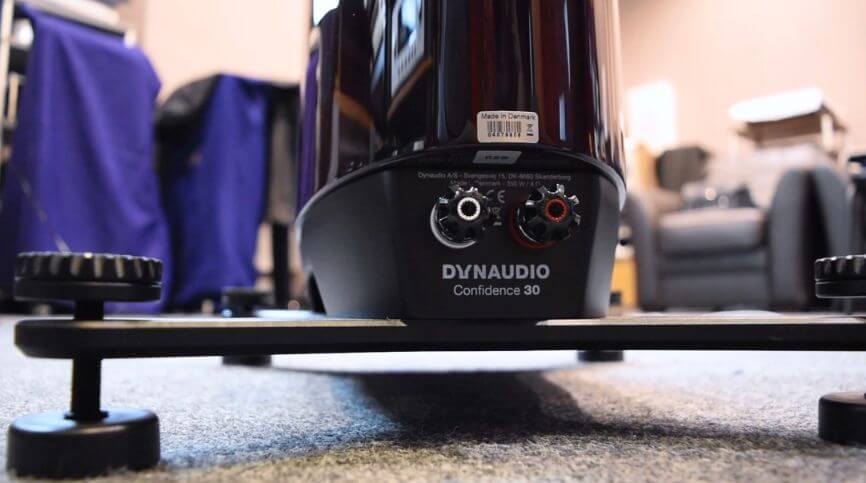

Dynaudio Confidence 30 binding post

IV. Making The Connection

Connecting your speaker to an amplifier is a straightforward process, but it’s important to take care and follow the steps carefully to ensure that you get the best possible sound quality. Here’s a revised version of the steps to help you connect your speaker to amplifier:

  1. Unplug the amplifier: Before you begin, make sure to unplug the amplifier to avoid any risk of electrocution.
  2. Connect the speaker wire to the amplifier: Take the end of the speaker wire that corresponds to the back of the amplifier and carefully connect it to the appropriate terminal. Be sure to check the terminal to see if it is marked as positive or negative, and connect the wire accordingly. If the terminal uses a spring clip, simply push the clip down and insert the wire. If it uses a proprietary socket, match it with the corresponding terminal.
  3. Connect the speaker wire to the speaker: Repeat the process on the speaker side by connecting the speaker wire to the appropriate terminal. If the terminal uses a spring clip, simply push the clip down and insert the wire. If it uses a binding post, loosen the screw and insert the wire into the post. Again, be sure to check the terminal for positive and negative markings and connect the wire accordingly.

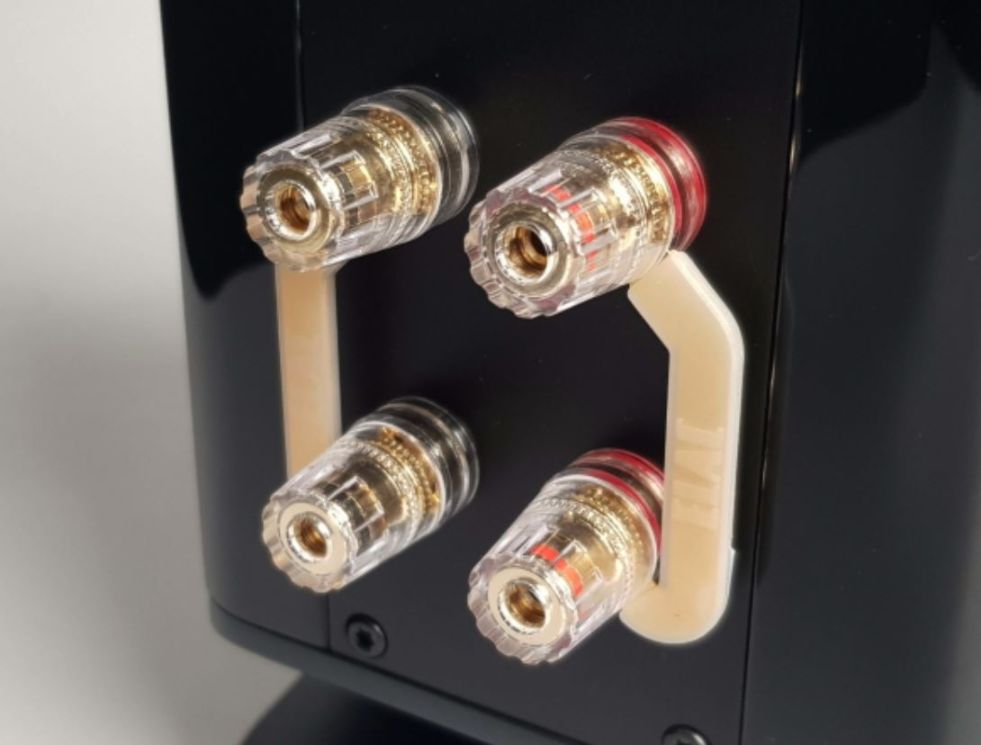

elac VELA BS 403 binding post

Tips for securing the connections and avoiding short circuits

Once you’ve made the connection, it’s important to ensure that the connections are secure and that there are no short circuits. Here are a few tips to help you do this:

  • Make sure that the connectors are fully seated in the terminal posts and that they’re not loose.
  • Avoid crossing the positive and negative wires, as this can cause a short circuit.
  • Double-check that all of the connections are secure before turning on the amplifier and speakers.

By following these steps and taking care to secure the connections and avoid short circuits, you’ll be well on your way to getting the best possible sound quality from your system.

V. Testing The Connection

Now that you’ve made the connection between your amplifier and speakers, it’s time to test the connection to make sure everything is working properly. Here are the key steps to follow when testing the connection:

monitor audio bronze 100 binding post

Tips for performing a basic sound test

To test the connection, you’ll need to turn on your amplifier and speakers and play some music or audio through the system. Here are a few tips to help you perform a basic sound test:

  • Start by playing a track or piece of audio that you’re familiar with. This will help you to more easily identify any issues with the sound quality.
  • Pay attention to the overall volume and balance of the sound. The volume should be consistent across all frequencies, and the left and right channels should be evenly balanced.
  • Listen for any distortion or crackling in the sound. These issues can be caused by a poor connection or an issue with the amplifier or speakers.

Troubleshooting common issues with the connection

If you experience any issues with the sound quality or the connection, there are a few common causes to check:

  • Make sure that all of the connections are secure and that there are no loose wires.
  • Check that the amplifier and speakers are set up properly and that they’re not too close together or too far apart.
  • If you’re using an amplifier with multiple channels, make sure that the channels are properly balanced.

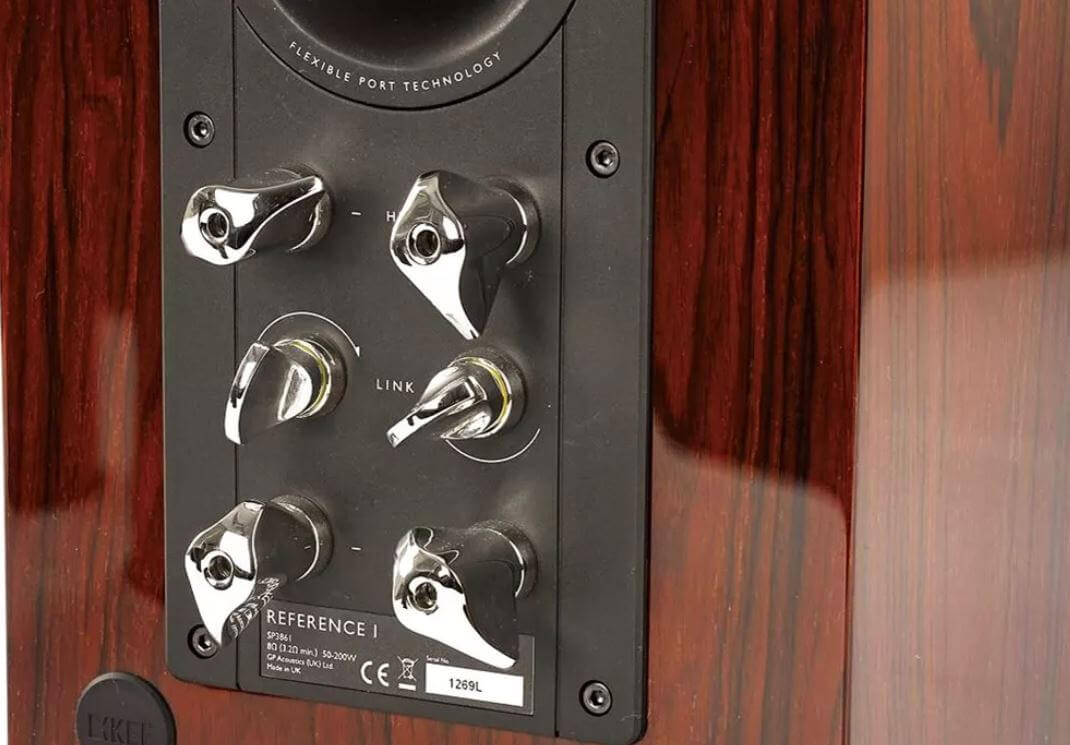

KEF reference 1 binding post

By performing a basic sound test and troubleshooting any issues that arise, you’ll be able to ensure that your amplifier and speakers are working together properly and that you’re getting the best possible sound quality from your system.

VI. Advanced Techniques For Improving Sound Quality

If you’re looking to take your sound system to the next level, there are a few advanced techniques that you can use to improve the sound quality of your amplifier and speakers. Here are three options to consider:

  • Bi-amping or tri-amping the speakers: Bi-amping and tri-amping refer to the process of using multiple amplifiers to power different parts of a speaker. For example, a bi-amped speaker would have one amplifier for the low frequencies (e.g. bass) and another amplifier for the high frequencies (e.g. treble). This can allow for more precise control over the sound and can result in improved sound quality.
  • Using a crossover network: A crossover network is a device that splits the audio signal into different frequency ranges, allowing you to route different frequencies to different amplifiers or speakers. This can help to improve the overall sound quality by allowing you to better match the amplifiers and speakers to the specific frequency range they’re designed to handle.
  • Using a sound processor or equalizer: A sound processor or equalizer allows you to fine-tune the sound of your system by adjusting the levels of different frequency ranges. This can be especially useful if you’re trying to optimize the sound for a specific type of music or if you’re trying to compensate for any issues with the acoustics of your room.

By using these advanced techniques, you’ll be able to take your sound system to the next level and get the best possible sound quality from your amplifier and speakers.

VII. Conclusion

In conclusion, connecting your speaker to an amplifier is an important step in achieving the best possible sound quality from your sound system. By following the steps outlined in this guide, you’ll be able to make a proper connection and get the most out of your equipment.

Some key points to remember when connecting your speaker to an amplifier include:

  • Gather the necessary equipment, including the appropriate cables and connectors for your amplifier and speakers.
  • Prepare your amplifier and speakers by setting them up in the desired location and ensuring that they’re turned off.
  • Make the connection using the appropriate cables and connectors, taking care to secure the connections and avoid short circuits.
  • Test the connection and troubleshoot any issues that arise.


Finally, don’t be afraid to experiment with different connections and techniques to find the best sound quality for your setup. By taking the time to fine-tune your system, you’ll be able to enjoy your music and audio to the fullest.
