Complete Guide to The Coaxial Speaker Cable


Welcome to our complete guide to coaxial speaker cable! If you’re an audiophile or simply looking to improve the sound quality of your home audio system, you’ve come to the right place.

I. Introduction

First, let’s define coaxial speaker cable. Simply put, it is a type of wire that is used to transmit audio signals from an amplifier to a speaker. Coaxial speaker cable is distinguished by its construction, which consists of a single wire conductor surrounded by insulation and a braided or foil shield. This unique design helps to reduce interference and improve the overall quality of the audio signal.

Now that we have a basic understanding of what coaxial speaker cable is, let’s talk about why it’s important. A proper speaker cable is crucial for ensuring high-quality sound in any audio system. If the speaker wire is of poor quality or improperly installed, it can lead to a host of issues such as signal loss, interference, and even damage to your audio equipment.

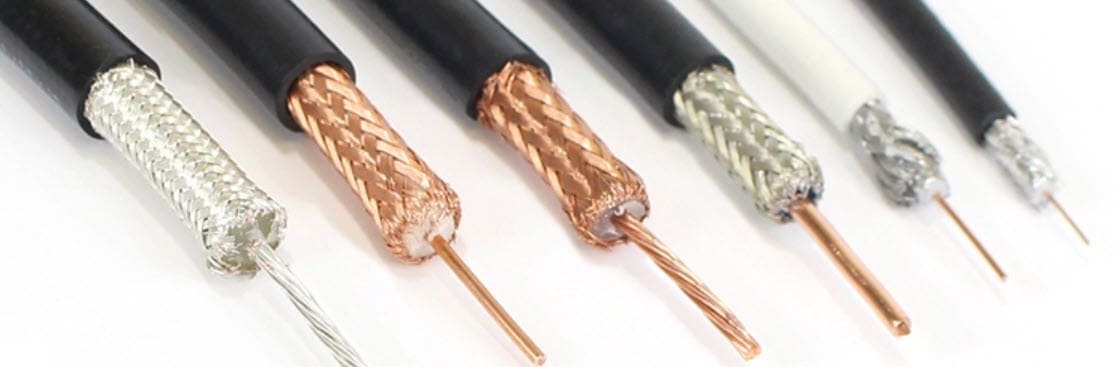

coaxial cable image 0

On the other hand, using high-quality coaxial speaker cables can greatly improve the overall sound quality and performance of your audio system.

In this guide, we will delve deeper into the various types of coaxial speaker cables, how to choose the right one for your system, and the proper way to install and maintain it. So if you’re ready to elevate your audio setup, keep reading!

II. Types of Coaxial Speaker Cable

When it comes to coaxial speaker cable, there are three main types to choose from braided coaxial cable, shielded coaxial cable, and unshielded coaxial cable. Let’s take a closer look at each type:

  • Braided coaxial cable: This type of coaxial cable is constructed with a braided outer shield made of copper or aluminum wire. The braided shield provides additional protection against interference and makes the cable more durable. Braided coaxial cable is a good choice for longer runs and environments with high levels of electromagnetic interference (EMI).
  • Shielded coaxial cable: Like braided coaxial cable, shielded coaxial cable has an outer shield layer, but it is typically made of a foil material rather than a braided wire. The foil shield provides excellent protection against EMI, making it a good choice for use in industrial or commercial settings. However, it is not as flexible as braided coaxial cable and may be more difficult to install in tight spaces.
  • Unshielded coaxial cable: As the name suggests, the unshielded coaxial cable does not have an outer shield layer. It is the simplest and most cost-effective type of coaxial cable, making it a popular choice for shorter runs and basic audio setups. However, it is more susceptible to interference and may not provide the same level of sound quality as shielded or braided coaxial cable.
coaxial cable image 1

When selecting a coaxial speaker cable, it’s important to consider the specific needs of your audio system and the environment in which it will be used. Each type of coaxial cable has its own strengths and weaknesses, so be sure to choose the one that best meets your needs.

III. Choosing the Right Coaxial Speaker Cable

Now that we’ve covered the different types of coaxial speaker cables, let’s talk about how to choose the right one for your audio system. There are a few key factors to consider when selecting coaxial speaker cable:

  • Gauge: The gauge of a wire refers to its thickness or diameter. A lower gauge number indicates a thicker wire, while a higher gauge number indicates a thinner wire. In general, a thicker wire (lower gauge) is better for longer runs and can handle higher power levels without overheating. However, thicker wire is also more rigid and may be more difficult to work with. Thinner wire (higher gauge) is more flexible and easier to install, but it may not be suitable for longer runs or high power levels.
  • Length: The length of the coaxial cable will depend on the distance between your audio equipment and your speakers. Make sure to measure the distance accurately and add a few extra feet to account for any unexpected turns or obstacles. It’s important to use the appropriate length of coaxial cable to avoid signal loss or interference.
  • Quality: The quality of the coaxial cable can greatly impact the overall sound quality and performance of your audio system. Be sure to choose a high-quality coaxial cable from a reputable manufacturer. The cheap, low-quality cable may save you a few dollars upfront, but it could lead to issues down the line.
  • Compatibility: It’s important to ensure that the coaxial cable you choose is compatible with your audio equipment. Check the manufacturer’s specifications and make sure the coaxial cable meets the required gauge and connector type. Using the wrong type of coaxial cable can cause damage to your equipment or result in poor sound quality.

By considering these factors, you can choose the right coaxial speaker cable for your audio system and enjoy the high-quality sound for years to come.

IV. Installing Coaxial Speaker Cable

Installing a coaxial speaker cable can seem like a daunting task, but with the right tools and a little bit of knowledge, it can be a straightforward process.

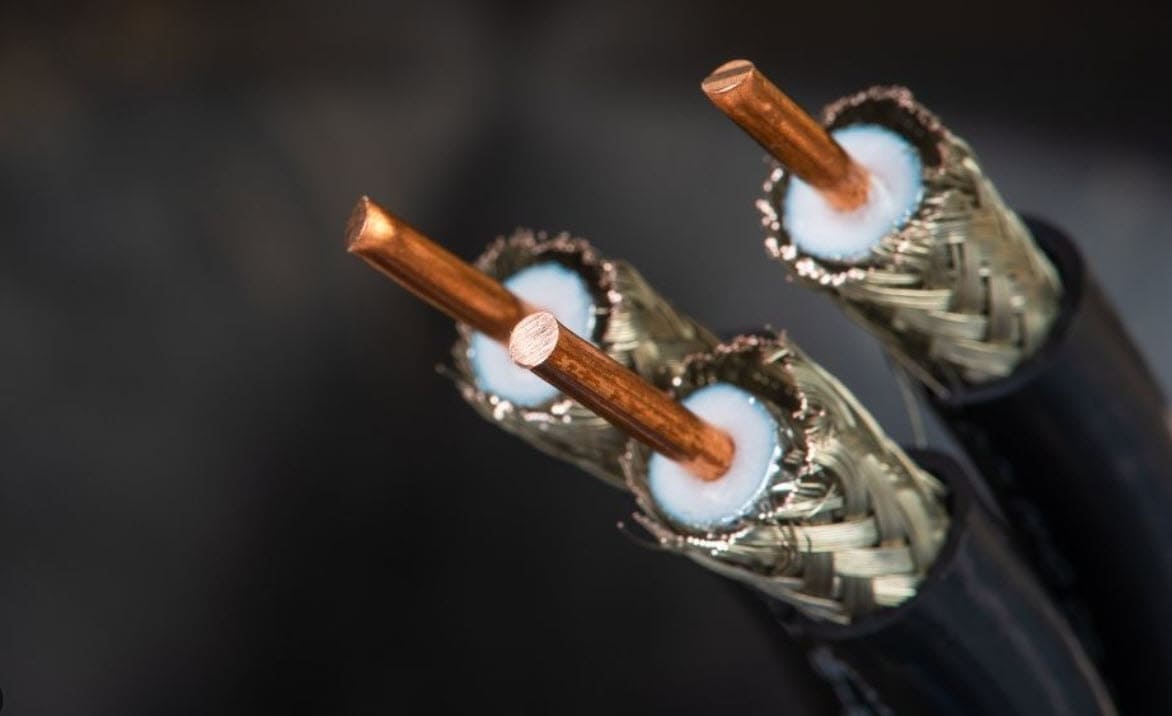

coaxial cable image 4

First, let’s go over the tools and materials you will need. You will need a coaxial cable stripper, wire stripper, wire connectors, and, of course, your coaxial speaker cable. Make sure you have the appropriate connectors for your specific type of coaxial cable – there are different connectors for braided coaxial cable, shielded coaxial cable, and unshielded coaxial cable.

Once you have everything you need, it’s time to start the installation process. Here is a step-by-step guide to help you along the way:

  1. Measure the distance between your audio equipment and your speakers to determine how much coaxial cable you will need. Add a few extra feet to account for any unexpected turns or obstacles.
  2. Strip the outer jacket of the coaxial cable using a coaxial cable stripper. Be careful not to damage the inner conductor or insulation.
  3. Strip the inner conductor using a wire stripper. Again, be careful not to damage the wire.
  4. Attach the wire connectors to the ends of the coaxial cable. Make sure they are securely fastened.
  5. Connect one end of the coaxial cable to the audio equipment and the other end to the speakers.
  6. Test the connection to make sure everything is working properly.

Here are a few tips to help ensure a successful installation:

  • Make sure the coaxial cable is not kinked or bent at sharp angles. This can cause signal degradation or even break the wire.
  • Use cable ties or cable wraps to keep the coaxial cable organized and in place.
  • If you are running the coaxial cable through walls or ceilings, make sure to use appropriate conduit or wire molding to protect the cable.
  • If you are unsure of any part of the installation process, it is always best to consult a professional or refer to the manufacturer’s instructions.
  • Installing a coaxial speaker cable may take a bit of time and effort, but the end result is well worth it. A properly installed coaxial speaker cable will ensure high-quality sound and a reliable connection for your audio system.

V. Maintaining Coaxial Speaker Cable

Proper maintenance is important for ensuring the long-term performance and reliability of your coaxial speaker cable. Here are some tips for keeping your coaxial cable in top condition:

  • Cleaning: Over time, dirt and grime can accumulate on the surface of the coaxial cable, which can lead to signal degradation or even damage to the wire. To clean your coaxial cable, use a soft, dry cloth to gently wipe away any dirt or dust. Avoid using water or harsh chemicals, as they can damage the cable.
  • Care: To extend the life of your coaxial cable, it’s important to handle it with care. Avoid bending or twisting the cable too tightly, as this can damage the wire or cause signal loss. When running the cable through walls or ceilings, use appropriate conduit or wire molding to protect it from physical damage.
  • Common problems: Despite your best efforts, there may be times when you encounter issues with your coaxial speaker cable. Some common problems include signal loss, interference, or damaged connectors.

If you experience any of these issues, try troubleshooting the problem by checking for loose connections, inspecting the cable for damage, or re-seating the connectors. If the problem persists, it may be necessary to replace the coaxial cable or seek the assistance of a professional.

By following these simple maintenance and troubleshooting tips, you can help ensure that your coaxial speaker cable is always in top working order.

coaxial cable image

VI. Comparison to Other Speaker Wire Types

A coaxial speaker cable is just one type of wire that can be used to transmit audio signals from an amplifier to a speaker. In this section, we’ll compare coaxial speaker cables to two other types of speaker wire: regular speaker wire and balanced audio cable.

  • Regular speaker wire: Regular speaker wire is a basic type of wire that is made up of two or more insulated conductor wires. It is typically less expensive and easier to find than a coaxial speaker cable, making it a popular choice for basic audio setups. However, regular speaker wire is more susceptible to interference and may not provide the same level of sound quality as coaxial speaker cable.
  • Balanced audio cable: Balanced audio cable is a type of wire that is used to transmit audio signals in professional audio systems. It consists of three conductors – positive, negative, and ground – that are encased in a shield. The balanced design helps to reduce interference and improve the overall sound quality. Balanced audio cable is typically more expensive and less commonly used in consumer audio systems.

In general, coaxial speaker cable provides a higher level of sound quality and performance compared to regular speaker wire. It is more resistant to interference and provides a more reliable connection. Balanced audio cable is even more advanced than coaxial speaker cable, but it may not be necessary or too expensive for most consumer audio systems.

When deciding which type of speaker wire to use in your audio system, it’s important to consider your specific needs and budget. Coaxial speaker cable is a good choice for those who want the highest level of sound quality and performance, while regular speaker wire may be sufficient for basic audio setups. Balanced audio cable is best suited for professional audio systems.

VII. Conclusion

In conclusion, a coaxial speaker cable is a valuable addition to any audio system. It provides a high-quality, interference-free connection between your audio equipment and speakers, resulting in improved sound quality and performance.

When selecting a coaxial speaker cable, be sure to consider the specific needs of your audio system, including the length of the run, the required gauge, and the type of connectors needed. Proper installation is also crucial for ensuring the best performance and reliability of your coaxial speaker cable.

In summary, the benefits of using coaxial speaker cables include:

  • Improved sound quality
  • Reduced interference
  • Reliable connection
  • Durability

If you’re looking to upgrade your audio system and want the best sound quality and performance, consider using a coaxial speaker cable. With proper selection and installation, you can enjoy high-quality audio for years to come.
